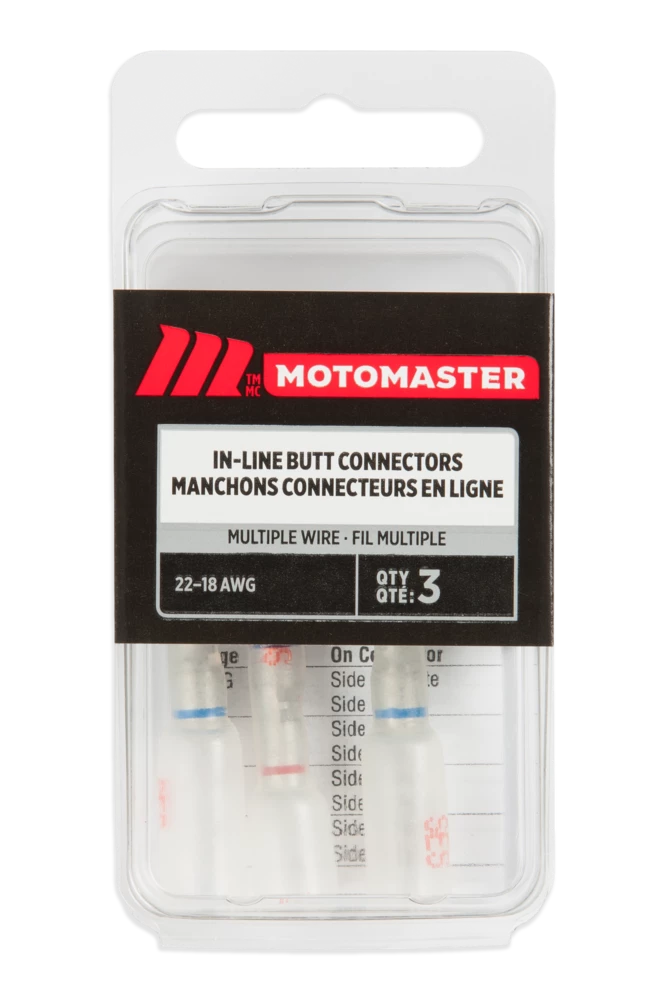

Certified Heat Shrinkable Multiple-Wire Butt Connectors

Features

• Certified Heat Shrinkable Multiple-Wire Butt Connectors joins two wires to one
• Colour stripes on the connector indicates which crimp die to use
• Colour dash on tubing indicates the wire gauge size to use
• Active adhesive on tubing seals between multiple wires
• Available in a variety of sizes

Specifications

• Advanced Features: Weather Resistant
• Amp Capacity (a): 50 A
• Assembled Height (cm): 1.91 cm
• Assembled Height (ft): 0.06 ft
• Assembled Height (in): 0.75 in
• Assembled Length (cm): 6.83 cm
• Assembled Length (ft): 0.22 ft
• Assembled Length (in): 2.69 in
• Assembled Weight (g): 10.30 g
• Assembled Weight (ml): 10.30 ml
• Assembled Weight (oz): 0.36 oz
• Assembled Width (cm): 3.97 cm
• Assembled Width (in): 1.56 in
• Assembled Width (mm): 39.70 mm
• Certifications: UL Listed
• Electrical Connector Type: Butt Connector
• Female/Male Outlet: Not Applicable
• Maximum Operating Temperature (°C): 105.00 °C
• Maximum Operating Temperature (°F): 221.00 °F
• Minimum Operating Temperature (°C): -55.00 °C
• Minimum Operating Temperature (°F): -67.00 °F
• Mount Style: Crimp
• Number of Ports: 0
• Plug Type: Not Applicable
• Primary Colour: Clear
• Primary Material: Copper
• Product Use(s): Automotive
• Voltage (V): 600 V
• Wire Types Accommodated: Copper
