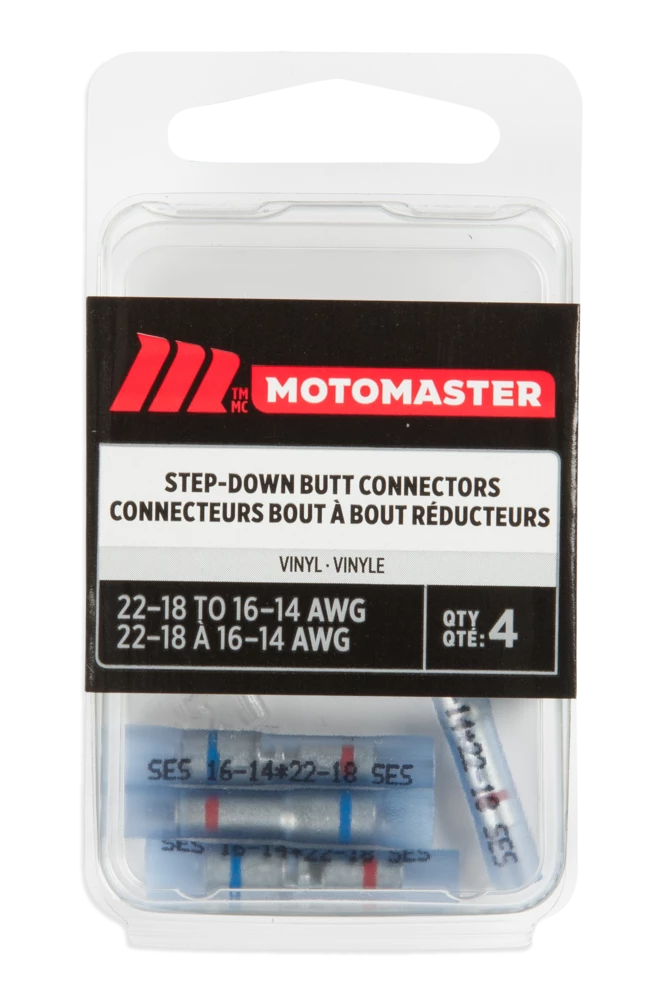

Certified 22-18 To 16-14 AWG Vinyl Step Down Butt Connector, 4-pk

Features

• Certified 22-18 to 16-14 AWG Vinyl Step Down Butt Connector is used for joining incongruent wire sizes
• Connector features a varied inside and outside diameter for a sound mechanical crimp
• Colour-coded stripe on each end to indicate which wire size and crimp die to use
• Easy to crimp and provides strong crimp termination
• Window in connector for visual inspection
• Includes 4 per pack

Specifications

• Advanced Features: No Advanced Features
• Amp Capacity (a): 33 A
• Assembled Height (cm): 1.31 cm
• Assembled Height (ft): 0.04 ft
• Assembled Height (in): 0.52 in
• Assembled Length (cm): 6.19 cm
• Assembled Length (ft): 0.20 ft
• Assembled Length (in): 2.44 in
• Assembled Weight (g): 10.10 g
• Assembled Weight (ml): 10.10 ml
• Assembled Weight (oz): 0.36 oz
• Assembled Width (cm): 3.97 cm
• Assembled Width (in): 1.56 in
• Assembled Width (mm): 39.70 mm
• Certifications: No Certifications
• Consumer Pack Size: 1
• Electrical Connector Type: Butt Connector
• Female/Male Outlet: Not Applicable
• Maximum Operating Temperature (°C): 75.00 °C
• Maximum Operating Temperature (°F): 167.00 °F
• Minimum Operating Temperature (°C): -55.00 °C
• Minimum Operating Temperature (°F): -67.00 °F
• Mount Style: Crimp
• Number of Ports: 0
• Plug Type: Not Applicable
• Primary Colour: Blue
• Primary Material: Copper
• Product Use(s): Automotive
• Voltage (V): 300 V
• Wire AWG Capability: Not Applicable
• Wire Types Accommodated: Copper
