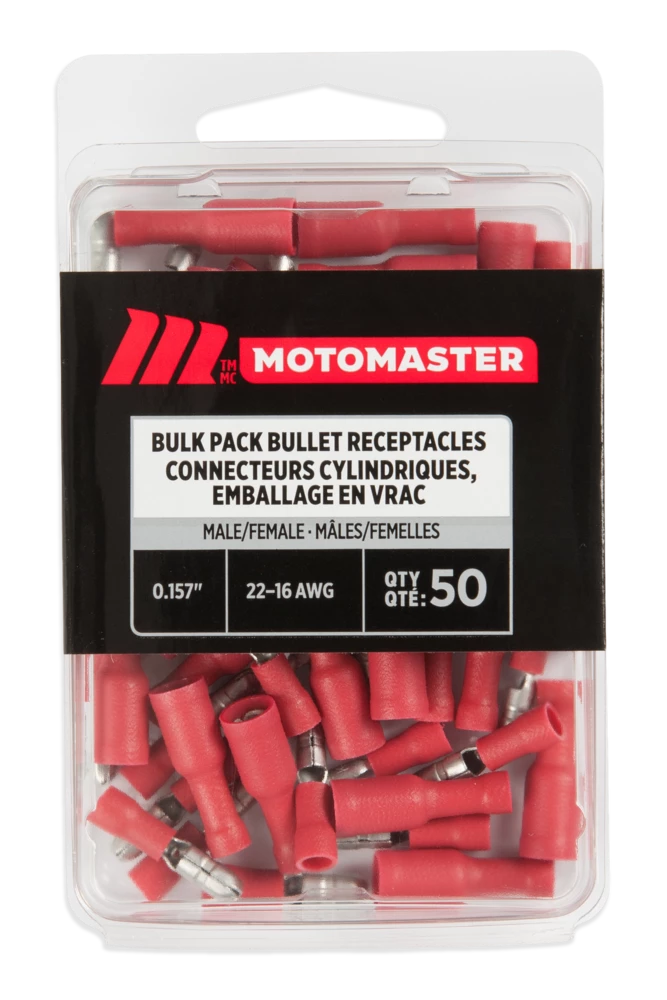

Certified 22-18 AWG Male/Female Bullet Connector, Bulk Pack, .157-in, 50-pk

Features

• Certified 22-18 AWG Male/Female Bullet Connector is used for electrical wire termination
• Electro-tin plating (MIL-T-10727) stops power draining corrosion, pitting and oxidation
• Funnel fed barrel entry ensures fast wire insertion and eliminates turned back strands
• Multiple “V” grooves inside full 1/4″ barrel for maximum wire grip and current flow
• Vinyl insulation sleeve provides dielectric strength and withstands crimping pressure
• Locating ridge for wire insulation support and positioning crimping tool
• Diameter: .157″
• Includes 50 per pack

Specifications

• Advanced Features: No Advanced Features
• Amp Capacity (a): 0 A
• Assembled Height (cm): 1.59 cm
• Assembled Height (ft): 0.05 ft
• Assembled Height (in): 0.63 in
• Assembled Length (cm): 8.57 cm
• Assembled Length (ft): 0.28 ft
• Assembled Length (in): 3.37 in
• Assembled Weight (g): 46.20 g
• Assembled Weight (ml): 46.20 ml
• Assembled Weight (oz): 1.63 oz
• Assembled Width (cm): 6.03 cm
• Assembled Width (in): 2.37 in
• Assembled Width (mm): 60.30 mm
• Certifications: UL Listed
• Consumer Pack Size: 1
• Electrical Connector Type: Plug
• Female/Male Outlet: Not Applicable
• Maximum Operating Temperature (°C): 75.00 °C
• Maximum Operating Temperature (°F): 167.00 °F
• Minimum Operating Temperature (°C): -40.00 °C
• Minimum Operating Temperature (°F): -40.00 °F
• Mount Style: Crimp
• Number of Ports: 0
• Plug Type: Not Applicable
• Primary Colour: Red
• Primary Material: Brass
• Product Use(s): Automotive
• Voltage (V): 600 V
• Wire AWG Capability: 22 to 16
• Wire Types Accommodated: Copper
